Branching Reasoning AI Chat Input for React and Tailwind CSS (shadcn/ui) compares approaches. It is built to make a chosen approach clear. Fanned cards, score bars, a 520ms merge, streaming text, and expandable alternatives support controlled state and controlled or local drafts. Includes keyboard access, reduced motion, and light/dark themes. Use it for AI chat, assistants, or SaaS. The included demo simulates sample scores and an answer; the component makes no requests. Requires React and lucide-react, with no animation library.
"use client";
import * as React from "react";
import { GitFork, RotateCcw } from "lucide-react";
import { BranchingReasoningChatInput } from "@/components/ui/branching-reasoning-chat-input";
import type { BranchingReasoningStatus, ReasoningBranch } from "@/components/ui/branching-reasoning-chat-input";
const QUESTION = "Which team plan fits us best?";
const ANSWER = "Compare seats, usage, and add-ons together. Then check your must-have features. The lowest base price may not be the best fit.";
const BRANCHES: ReasoningBranch[] = [
{ id: "features", title: "Match the features", note: "Check everyday needs.", score: 71 },
{ id: "usage", title: "Estimate usage", note: "Model a typical month.", score: 83 },
{ id: "cost", title: "Compare by total cost", note: "Include seats + add-ons.", score: 94 },
];
type DemoState = { status: BranchingReasoningStatus; prompt: string; value: string; branches: ReasoningBranch[]; answer: string };
type DemoRun = { id: number; source: "auto" | "user"; prompt: string };
type DemoProps = { autoplay?: boolean };
const initial = (): DemoState => ({ status: "idle", prompt: "", value: QUESTION, branches: [], answer: "" });
export default function BranchingReasoningDemo({ autoplay = true }: DemoProps) {
const [state, setState] = React.useState(initial);
const [motion, setMotion] = React.useState({ ready: false, reduced: true });
const [run, setRun] = React.useState({ id: 0, source: "auto", prompt: QUESTION } as DemoRun | null);
const started = React.useRef(false);
React.useEffect(() => {
const media = window.matchMedia("(prefers-reduced-motion: reduce)");
const update = () => setMotion({ ready: true, reduced: media.matches });
update();
media.addEventListener("change", update);
return () => media.removeEventListener("change", update);
}, []);
React.useEffect(() => {
if (!motion.ready || !run || (run.source === "auto" && !autoplay)) return;
const sample = run.prompt === QUESTION;
const approaches: ReasoningBranch[] = sample ? BRANCHES : [
{ id: "outline", title: "Start with an outline", note: "Set a useful structure.", score: 72 },
{ id: "examples", title: "Use an example", note: "Make the idea concrete.", score: 81 },
{ id: "direct", title: "Give a direct answer", note: "Keep the next step clear.", score: 92 },
];
const response = sample ? ANSWER : "This is a sample response to your question. Connect your own assistant to provide the approaches, scores, and answer.";
const selected = approaches.map((branch, index) => ({ ...branch, chosen: index === 2 }));
if (motion.reduced) {
if (run.source === "auto" && !started.current) return;
setState({ status: "done", prompt: run.prompt, value: "", branches: selected, answer: response });
setRun(null);
return;
}
started.current = false;
const timers: number[] = [];
const offset = run.source === "auto" ? 1000 : 0;
const later = (ms: number, callback: () => void) => timers.push(window.setTimeout(callback, offset + ms));
if (run.source === "auto") setState(initial());
later(0, () => {
started.current = true;
setState({ status: "branching", prompt: run.prompt, value: "", branches: [], answer: "" });
});
later(400, () => setState((previous) => ({ ...previous, branches: approaches.map((branch) => ({ ...branch, score: 0 })) })));
for (let step = 0; step <= 10; step++) later(800 + step * 180, () => {
setState((previous) => ({ ...previous, branches: approaches.map((branch) => ({ ...branch, score: Math.round(branch.score! * step / 10) })) }));
});
later(2900, () => setState((previous) => ({ ...previous, status: "choosing", branches: selected })));
for (let step = 1; step <= 20; step++) later(3300 + (step - 1) * 105, () => {
setState((previous) => ({ ...previous, status: "answering", answer: response.slice(0, Math.ceil(response.length * step / 20)) }));
});
later(5400, () => {
setState((previous) => ({ ...previous, status: "done", answer: response }));
setRun(null);
});
return () => timers.forEach((timer) => window.clearTimeout(timer));
}, [autoplay, motion.ready, motion.reduced, run]);
function send(prompt: string) {
setRun((previous) => ({ id: (previous?.id ?? 0) + 1, source: "user", prompt }));
}
return (

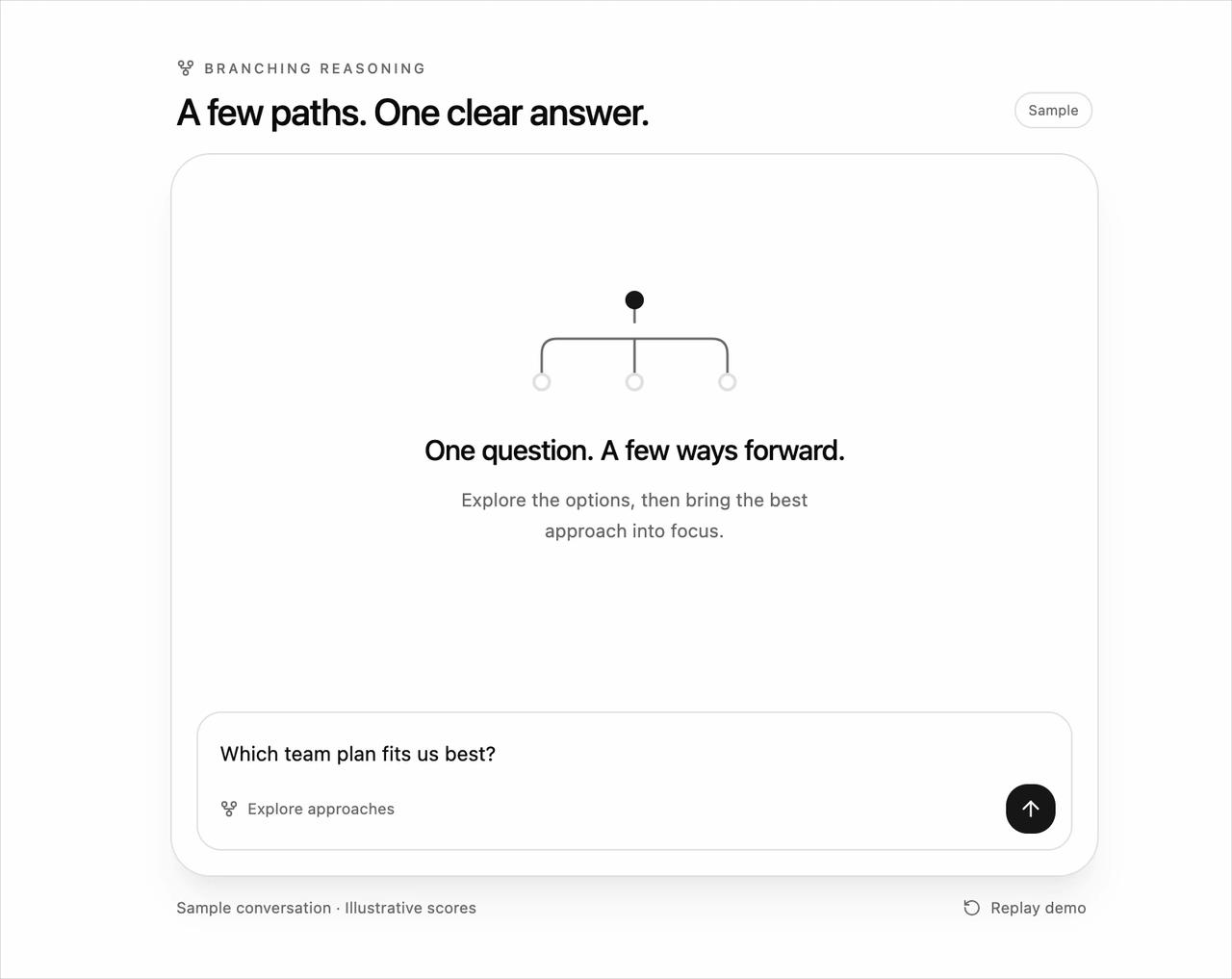

<div data-branching-demo data-autoplay={autoplay} className="flex min-h-svh w-full items-center justify-center bg-background p-4 font-sans text-foreground">
<div className="w-full max-w-[600px]">
<header className="mb-3 flex items-end justify-between gap-3 px-1">
<div>
<p className="mb-1.5 flex items-center gap-1.5 text-[9px] font-medium uppercase tracking-[0.18em] text-muted-foreground"><GitFork className="size-3" aria-hidden="true" /> Branching reasoning</p>
<h1 className="text-[24px] font-medium leading-tight tracking-tight">A few paths. One clear answer.</h1>
</div>
<span className="mb-1 shrink-0 rounded-full border border-border px-2 py-1 text-[9px] text-muted-foreground">Sample</span>
</header>
<div className="h-[468px]" data-demo-stage>
<BranchingReasoningChatInput status={state.status} prompt={state.prompt} branches={state.branches} answer={state.answer}
value={state.value} onValueChange={(value) => {
if (state.status === "idle") setRun(null);
setState((previous) => ({ ...previous, value }));
}}
onSubmit={send} onStop={() => {
setRun(null);
setState((previous) => ({ ...previous, status: "done", value: previous.value || previous.prompt, answer: previous.answer || "Stopped before an answer was ready." }));
}} />
</div>
<footer className="mt-2 flex min-h-6 items-center justify-between gap-3 px-1 text-[10px] text-muted-foreground">
<span>Sample conversation · Illustrative scores</span>
<button type="button" data-replay onClick={() => send(QUESTION)}
className="flex shrink-0 items-center gap-1.5 rounded-md px-1 py-1 outline-none hover:text-foreground focus-visible:ring-2 focus-visible:ring-ring"><RotateCcw className="size-3" aria-hidden="true" /> Replay demo</button>
</footer>
</div>
</div>
);
}
