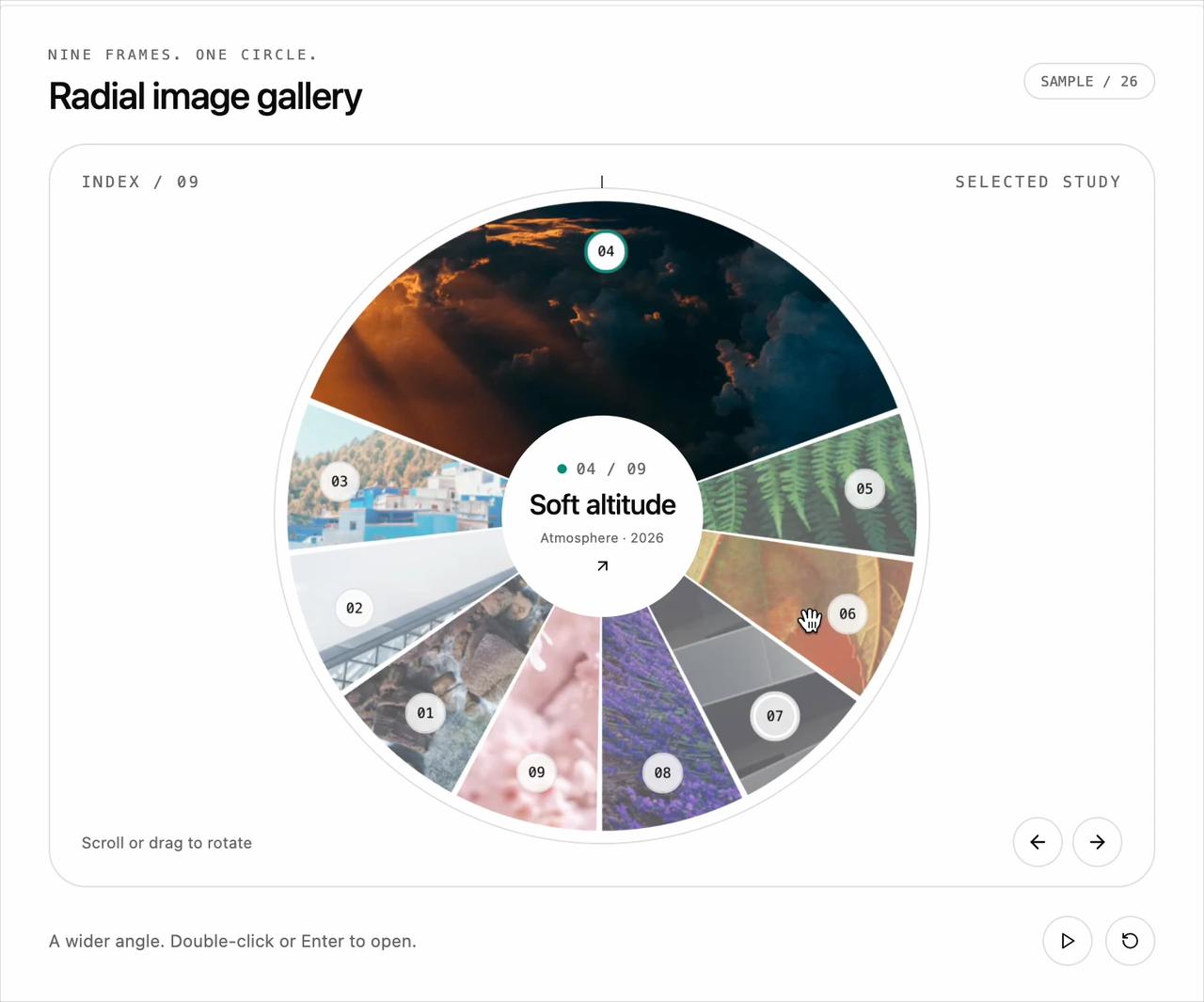

Radial Wedge Image Gallery for React and Tailwind CSS (shadcn/ui) turns images into a circular index. It is built to reveal more with every turn. Expanding slices, rotation and an iris view support controlled state, keyboard access, reduced motion, and light/dark themes. Use it for portfolios and visual collections. The included demo follows a seven-second tour; the component makes no requests. Requires React and lucide-react, with no animation library.
"use client";
import * as React from "react";
import { Pause, Play, RotateCcw } from "lucide-react";
import { RadialWedgeGallery, type RadialWedgeItem } from "@/components/ui/radial-wedge-gallery";
const photo = (id: string) => `https://images.unsplash.com/${id}?w=900&q=80&auto=format`;
export const RADIAL_WEDGE_DEMO_ITEMS: RadialWedgeItem[] = [
{ id: "01", title: "Quiet coast", discipline: "Landscape", year: "2026", src: photo("photo-1597860150045-3e4760e52ed5"), alt: "Coastal cliffs meeting a blue sea" },
{ id: "02", title: "Folded light", discipline: "Architecture", year: "2026", src: photo("photo-1487958449943-2429e8be8625"), alt: "Sculptural white architecture against the sky" },
{ id: "03", title: "Blue passage", discipline: "Color study", year: "2025", src: photo("photo-1569383746724-6f1b882b8f46"), alt: "Blue buildings climbing a hillside" },
{ id: "04", title: "Soft altitude", discipline: "Atmosphere", year: "2026", src: photo("photo-1504608524841-42fe6f032b4b"), alt: "Clouds and an open sky" },
{ id: "05", title: "Living lines", discipline: "Botanical", year: "2025", src: photo("photo-1531156992292-d36397ee9184"), alt: "Layers of green fern leaves" },
{ id: "06", title: "Warm season", discipline: "Color study", year: "2025", src: photo("photo-1473343775075-61805b64e5d6"), alt: "Warm autumn foliage" },
{ id: "07", title: "Open form", discipline: "Architecture", year: "2026", src: photo("photo-1488972685288-c3fd157d7c7a"), alt: "Overlapping diagonal lines of a modern building" },
{ id: "08", title: "Violet field", discipline: "Landscape", year: "2025", src: photo("photo-1600759487717-62bbb608106e"), alt: "Lavender flowers in a violet field" },
{ id: "09", title: "In bloom", discipline: "Botanical", year: "2026", src: photo("photo-1522383225653-ed111181a951"), alt: "Pink blossoms against a pale blue sky" },
];
export default function RadialWedgeGalleryDemo({ autoplay = true, interval = 9000 }: { autoplay?: boolean; interval?: number }) {
const [active, setActive] = React.useState(null as number | null);
const [expanded, setExpanded] = React.useState(false);
const [paused, setPaused] = React.useState(false);
const [reduced, setReduced] = React.useState(false);
const [replay, setReplay] = React.useState(0);
const playing = autoplay && !paused && !reduced;
React.useEffect(() => {
const media = window.matchMedia("(prefers-reduced-motion: reduce)");
const update = () => setReduced(media.matches);
update(); media.addEventListener("change", update);
return () => media.removeEventListener("change", update);
}, []);
// Anchor the short preview to its first committed frame, including under load.
React.useLayoutEffect(() => {
if (!playing || window.matchMedia("(prefers-reduced-motion: reduce)").matches) return;
let timers: number[] = [];
const cycle = () => {
setActive(null); setExpanded(false);
timers = [
window.setTimeout(() => setActive(1), 800),
window.setTimeout(() => setActive(4), 2400),
window.setTimeout(() => setActive(6), 4000),
window.setTimeout(() => setExpanded(true), 5400),
window.setTimeout(() => setExpanded(false), 6600),
];
};
cycle();
const loop = window.setInterval(cycle, Math.max(7400, interval));
return () => { timers.forEach(window.clearTimeout); window.clearInterval(loop); };
}, [playing, replay, interval]);
const restart = () => { setActive(null); setExpanded(false); setPaused(false); setReplay((value) => value + 1); };
return <main data-radial-demo data-playing={playing} data-autoplay={autoplay ? "on" : "off"} className="mx-auto flex h-svh min-h-[360px] w-full max-w-[1100px] flex-col gap-4 overflow-hidden bg-background px-5 py-5 text-foreground sm:px-8 sm:py-6">
<header className="flex shrink-0 items-center justify-between gap-4">
<div><p className="mb-1 font-mono text-[9px] tracking-[0.2em] text-muted-foreground uppercase">Nine frames. One circle.</p><h1 className="text-2xl leading-tight font-medium tracking-tight">Radial image gallery</h1></div>
<span className="shrink-0 rounded-full border border-border px-2.5 py-1 font-mono text-[9px] tracking-wide text-muted-foreground">SAMPLE / 26</span>
</header>
<RadialWedgeGallery items={RADIAL_WEDGE_DEMO_ITEMS} active={active} expanded={expanded} hubTitle="Different angles"
onActiveChange={(index) => { setPaused(true); setActive(index); }}
onExpandedChange={(next) => { setPaused(true); setExpanded(next); }}
className="min-h-0 flex-1" style={{ aspectRatio: "auto" }} />
<footer className="flex h-9 shrink-0 items-center justify-between gap-3">
<p className="max-w-[65%] text-[11px] leading-relaxed text-muted-foreground">{expanded ? "One frame, beyond the circle. Click to return." : active === null ? "Hover a slice. Find another perspective." : "A wider angle. Double-click or Enter to open."}</p>
<div className="flex shrink-0 items-center gap-2">
<button type="button" data-radial-pause aria-label={playing ? "Pause demo" : "Play demo"} aria-pressed={!playing} disabled={!autoplay || reduced} onClick={() => setPaused((value) => !value)} className="flex h-8 w-8 items-center justify-center rounded-full border border-border outline-none hover:bg-muted focus-visible:ring-2 focus-visible:ring-ring disabled:opacity-40">{playing ? <Pause aria-hidden className="h-3 w-3" /> : <Play aria-hidden className="h-3 w-3" />}</button>
<button type="button" data-radial-replay aria-label="Replay demo" onClick={restart} className="flex h-8 w-8 items-center justify-center rounded-full border border-border outline-none hover:bg-muted focus-visible:ring-2 focus-visible:ring-ring"><RotateCcw aria-hidden className="h-3 w-3" /></button>
</div>
</footer>
</main>;
}
