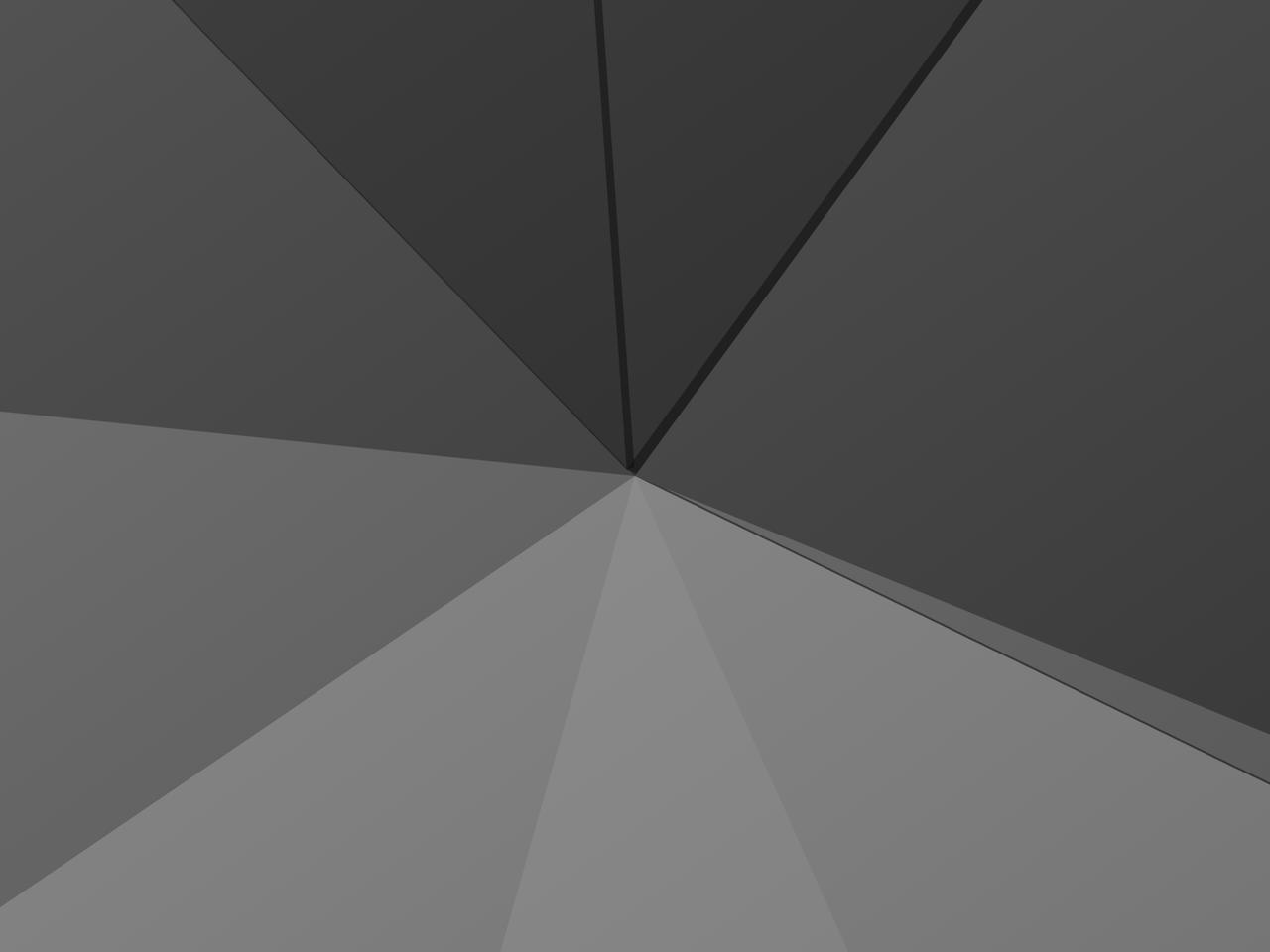

A full-viewport canvas route-transition curtain that closes and reopens like a camera iris diaphragm, covering the page while the route swaps behind it.
"use client";
import { BladeStop } from "@/components/ui/blade-stop";
import { useCallback, useEffect, useRef, useState } from "react";
// A route curtain has a beginning, a middle and an end, so a demo that just
// mounts it shows nothing. This one wires it the way a router would and then
// drives that wiring on a loop: `active` closes the iris, onCovered is where the
// route actually changes (the page under the shutter is swapped at the frame the
// aperture reaches zero, which is the whole reason the callback exists), and
// onRevealed starts the dwell before the next navigation.
//
// The loop is real component state driven by the shutter's own completion
// callbacks — no synthesised input, no timeline. Under prefers-reduced-motion
// the shutter never travels, so the callbacks never fire and the loop simply
// does not start: the still frame stands in for it.
const ROUTES = [
{
path: "/archive",
title: "Archive",
body: "Every plate, every exposure, filed by date.",
},
{
path: "/optics",
title: "Optics",
body: "Nine leaves, one ring, one commanded angle.",
},
{
path: "/ledger",
title: "Ledger",
body: "What the shutter opened for, and for how long.",
},
];
// The open dwell is the only part of the cycle where the shutter is out of frame
// entirely, so it is deliberately the shortest beat: a screenshot taken at an
// arbitrary moment should land on the mechanism, not on a bare page.
const COVERED_DWELL = 420;
const OPEN_DWELL = 300;
export default function BladeStopDemo() {
// mounts COVERED and lifts, which is both the honest read of a route arriving
// and the frame worth catching: a screenshot taken a second after load lands
// on the aperture opening rather than on a settled plate or a bare page.
const [active, setActive] = useState(true);
const [route, setRoute] = useState(0);
const timer = useRef<number | null>(null);
// a route requested by a click, honoured at the covered frame instead of the
// loop's "next one along"
const pending = useRef<number | null>(null);
const later = useCallback((fn: () => void, ms: number) => {
if (timer.current !== null) window.clearTimeout(timer.current);
timer.current = window.setTimeout(fn, ms);
}, []);
useEffect(() => {
// The arrival: lift the curtain off the page it mounted over. Held for a
// beat rather than lifted immediately, so the whole first ~2s after load is
// covered-then-opening and any early capture of this page lands on the
// mechanism (measured: the screenshot gate shoots at ~1.6s from load).
const id = window.setTimeout(() => setActive(false), 1250);
return () => window.clearTimeout(id);
}, []);
useEffect(
() => () => {
if (timer.current !== null) window.clearTimeout(timer.current);
},
[],
);
const onCovered = useCallback(() => {
// the route change happens here, hidden behind the closed leaves
const want = pending.current;
pending.current = null;
setRoute((r) => (want !== null ? want : (r + 1) % ROUTES.length));
later(() => setActive(false), COVERED_DWELL);
}, [later]);
const onRevealed = useCallback(() => {
later(() => setActive(true), OPEN_DWELL);
}, [later]);
const page = ROUTES[route];
return (
<main className="h-screen w-full overflow-hidden bg-background">
<BladeStop active={active} onCovered={onCovered} onRevealed={onRevealed}>
<div className="flex h-full w-full flex-col justify-between p-8 sm:p-12">
<header className="flex items-baseline gap-4">
<span className="font-mono text-[11px] uppercase tracking-[0.28em] text-ns-muted">
ns-ui / blade-stop
</span>
<span className="font-mono text-[11px] text-ns-muted">
{page.path}
</span>
</header>
<div className="max-w-2xl">
<h1 className="text-5xl font-semibold tracking-tight text-foreground sm:text-7xl">
{page.title}
</h1>
<p className="mt-4 max-w-md text-sm text-ns-muted sm:text-base">
{page.body}
</p>
</div>
<nav className="flex flex-wrap gap-2" aria-label="Routes">
{ROUTES.map((r, i) => (
<button
key={r.path}
type="button"
onClick={() => {
// a manual navigation is the same API the loop uses: command
// the curtain closed and let onCovered do the swap
if (i === route || active) return;
if (timer.current !== null)
window.clearTimeout(timer.current);
pending.current = i;
setActive(true);
}}
aria-current={i === route ? "page" : undefined}
className={`rounded-sm border border-border px-3 py-1.5 font-mono text-[11px] uppercase tracking-[0.18em] transition-colors duration-150 focus-visible:outline-2 focus-visible:outline-offset-2 focus-visible:outline-ns-accent ${
i === route
? "bg-foreground text-background"
: "text-ns-muted hover:text-foreground"
}`}
>
{r.path.slice(1)}
</button>
))}
</nav>
</div>
</BladeStop>
</main>
);
}
